Insulated Glass Replacement
I have broken glass! What do I do next?
Are your windows broken, and the glass is still sort of in one piece, at least still upright in the window?
IF THIS IS AN EMERGENCY AND YOU NEED A BOARD-UP SERVICE, PLEASE CALL YOUR LOCAL SERVPRO
- **WEAR GLOVES AND EYE PROTECTION WHEN WORKING NEAR BROKEN GLASS!**
- **Be warned that any adhesive and tape can damage or discolor the frame.**
Typically when you have broken glass it's only one(1) pane on a multi-pane insulated unit, as such you can sometimes skip board-up and use a strong adhesive tape to hold the glass until replacement can occur.
If it's one(1) pane on a single pane window, you can sometimes get away with still taping-up the glass to the frame and it will help keep the elements out of your home.
Annealed/Hardened Glass:
This glass breaks in larger & sharper pieces, and the cracks are one to a few in longer lines. You can tape these up with just about any tape that you may have access to. Some tapes work better for this than most tapes will.
We recommend packing tape, duct tape, or Carpet Shield
- **WEAR GLOVES AND EYE PROTECTION WHEN WORKING NEAR BROKEN GLASS!**
-
**Be warned that any adhesive and tape can damage or discolor the frame.**
Tempered/Safety Glass:
This glass breaks into many, many pieces all at once at 3,300 mph (Mach 4.45) In some instances the glass will not fall out of the window/door right away. If you apply Carpet Shield to the broken-glass side before it falls out, you will see that the broken glass will stay in position for at least 12 - 16 weeks. Long enough to get replacement glass sized and ordered.
Be sure to overlap the seams of the Shield by a couple of inches or if using tape, overlap itself by half each time for a greater hold, and in most instances be sure that the tape is being applied to all the way onto the frame edge.
- **WEAR GLOVES AND EYE PROTECTION WHEN WORKING NEAR BROKEN GLASS!**
- **Be warned that any adhesive and tape can damage or discolor the frame.**
If you don't feel comfortable applying tape to the widow, let us know after you accept the quote and we'll bring some Carpet Shield with us and put some on at the final measure at no extra charge to you.* Carpet Shield is a translucent product that is 24" wide. That makes it a time saving, and more robust way to keep the glass in its original position while we wait for its replacement.
*Not all breaks can be or should be taped.
If you have single, double, or multi pane windows or glass doors that are in need of repair, you’ve come to the right place.
Your insulated glass unit (two or more panes of glass sealed at the factory) can be replaced by Colorado Glass and Shower. When you trust your glass needs to us, you will enjoy great selection and professional installation you can count on. If you are dealing with broken, hazy, moisture laden, or foggy double pane windows or glass doors, we can usually replace just the insulated glass and save you the cost of new windows or doors.

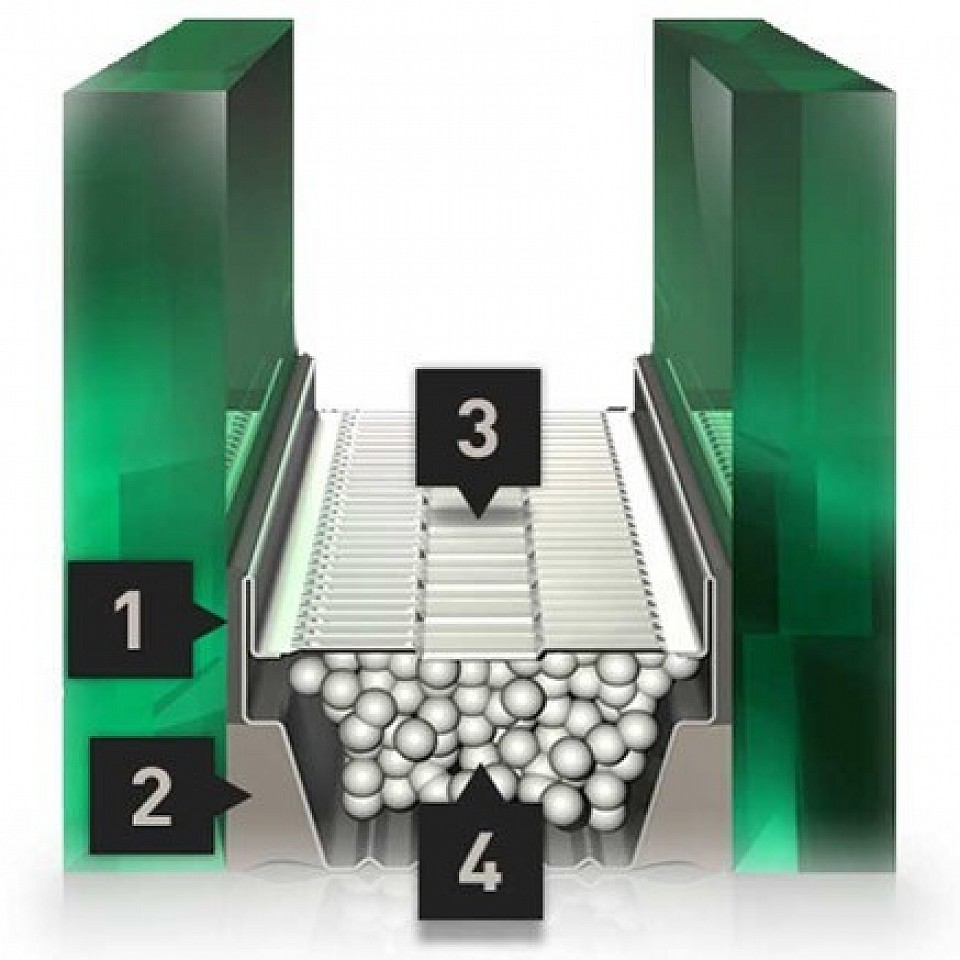

What is insulated glass?
1. Main Seal (Polyisobutylene/PIB)
2. Secondary Sealant (Polyurethane or Silicone)
3. Spacer Band (A spacer is a piece that separates and seals the two panes of glass together.)
4. Interior of Spacer Band (This is either an empty cavity or filled with desiccant balls to remove moisture.)
Window damage can happen quite unexpectedly or develop over a period of time. If you are looking for home window repair on the Western Slope of Colorado, Colorado Glass and Shower is the answer, we are your glass repair company. Whether your windows were cracked by weather or became damaged due to age or other unfortunate events, it is essential to schedule glass repair for your home right away. Cracked windows can lead to several bigger issues. Aside from being unsightly, and decreasing the property value of your home, cracked windows are fragile and can easily break and shatter. Damaged windows run the risk of injuring you, your family, and your guests. Not to mention, cracked windows can cause more unnecessary property damage and make your property extremely insecure – an easy target for burglary or other vandalism.
Don’t wait. Give Colorado Glass and Shower a call today for our window glass repair services. We specialize in quality residential window glass repair, commercial glass repair, window glass replacement, and high-quality window installation. We carry the best replacement window glass options from several top manufacturers, so you can easily match your existing windows or update your windows with something new.
Fix damaged windows, feel secure, improve your home’s property value, and increase energy efficiency with window glass repair services from Colorado Glass and Shower. You’ll be glad you did.
Should I Repair or Replace my Windows?
Not every window replacement is the same. Sometimes, a repair is all you need. The glass technicians at Colorado Glass and Shower specialize in the diagnostic process. Let us help you consider the structure of your window and the integrity of the glass. Together, we will assess the issue and advise whether repair or replacement is necessary.
What to Look for in a Glass Window Repair
Broken windows can compromise the security of your home, leaving it exposed to the elements and potential home invaders. As you look for a glass repair specialist, find an experienced professional who carries the products you need, offers competitive pricing, and cares about customer service.
When is it Time to Replace My Windows?
New, high-quality windows will last 15 to 20 years before homeowners should consider replacing them. Most vinyl window manufacturers also offer a warranty of up to 20 to 25 years, practically a lifetime warranty for the product. You should anticipate repairing your windows every 15 to 25 years by adding sealing and insulation as well as a variety of other temporary remedies. However, you will eventually need to replace the entire window. As your windows age, they will show symptoms of wear and tear. Decide whether to repair them or replace them by considering the window’s repairability, the retrofit strategy’s lifespan and upkeep, and your budget. Get a professional energy audit to guide your decision and maximize your return on investment.
LOW-E GLASS: HOW DOES IT WORK?
Low E, or Low-Emissivity, glass is a type of glazing glass containing a transparent, microscopic coating that improves the thermal efficiency of your windows. Today we’re looking at the advantages and disadvantages of low E glass, to make sure you’re as informed as possible when it comes to your next glazing purchase.
It is thought that between 10-50% of a given home’s energy loss occurs through its windows and doors, and that 90% of the energy lost through windows is lost through the glass itself. This is an undeniably hefty chunk of energy to be losing through such a small area of your house’s architecture. In 1975, the first low-emissivity glazing solution was brought to market in a bid to change this.
The emissivity of a surface refers to the amount of energy it emits at specific wavelengths, with thermal energy usually being the focus. A material is given a numerical thermal emissivity value of between 0 and 1, with a perfect reflector having an emissivity of 0 and the perfect absorber having an emissivity of 1.
Metals, such as Silver and Aluminium, have thermal emissivities of <0.05, while standard clear glass comes in at around 0.9, making it one of the higher emissivity materials out there. Breaking this down, standard glass with its thermal emissivity of 0.9, allows 90% of thermal energy to pass through it, reflecting the remaining 10%. Clearly then, window glass needs some help in reflecting heat back into the home.
This is where low E glass comes in. Low E glass is essentially standard clear glass with a microscopic, transparent coating on its surface that is better at reflecting heat than the glass itself, creating a composition that has a lower emissivity than standard glass. Glass with a low E coating therefore keeps your home warmer by reflecting a higher proportion of the heat back into your home, and can keep you cooler by reflecting solar thermal energy from outside.
This coating can either be “soft-coat” – applied to glass off-line in a vacuum chamber at room temperature and sealed within an IGU, or “hard-coat” – which is fused to the surface of the glass while it’s being produced. For the purposes of this piece, we’ll be focusing on soft-coat, as it is of lower-emissivity, and more commonly used. The coating used in soft-coat low E glass units tend to be that of a low-emissivity metal, such as silver.
ADVANTAGES OF LOW E GLASS: INSULATING POWER
Low E glass reflects a much higher percentage of heat back into your home than standard uncoated glass.
The first of the big advantages of low E glass is the supreme insulating power it adds to your windows. Low E glass has higher insulative properties than standard uncoated glass thanks to its low-emissivity film, thus making those harsh winters a fair bit warmer for your home’s inhabitants.
Adding the soft-coat low E film allows your glass to have an emissivity as low as 0.05. So, when combined with other insulating tech, such as warm-edge spacer bars, low E glass can be used to create an IGU (insulated glass unit) of real insulating potential. Double-glazed units made with low E glass, and the aforementioned IGU tech, can have a U-value as low as 0.9!
Translating this into a real-world scenario, low E glass might be the one for you if you have pesky family members fiddling with the thermostat on a regular basis. With your home now that bit warmer from November to March, familial thermostat offences could be reduced to an all-time low.
When it comes to the advantages and disadvantages of low E glass, there aren’t many more compelling arguments for its installation than its insulating power. From this sprout many other advantages that we’ll cover now…
ADVANTAGES OF LOW E GLASS: IMPRESSIVE SOLAR GAIN STATISTICS
In the blazing summer months, Low E Glass greatly helps to keep your indoor conditions a comfortable temperature.
Remember how we said a low E coating reflects heat? Well this isn’t purely limited to an insulating capacity. Look out your window, what do you see? Admittedly, there is a good chance that the answer is simply “clouds”, but often there is quite literally a gigantic ball of fire in the sky hurling all sorts of radiation at your windows, particularly between the months of May and September. Potentially making for some sweaty indoor summer conditions.
As we explain HERE the positioning of a soft-coat low E surface layer must be contained within an IGU. So, if you were looking at a double-glazed window from the outside, the very outer surface and the very inner surface are off limits – leaving you with two sealed internal surfaces to which a low E coating can be applied. The surface used is generally the internal surface of the outer pane.
Putting the coating here has some optical benefits, but also allows the IGU to have lower solar gain statistics. Essentially, in much the same way that low E glass reflects heat back into the house, thermal energy from the sun is reflected away from your home. A low E coating in combination with a tint is often referred to as “solar glass”, and can have a solar heat gain coefficient (g-value) of as low as 0.14 – meaning 86% of solar thermal energy is reflected away from your home. Thus, creating a cool, comfortable indoor summer environment – another of the big advantages of low E glass.
Applying this to another real-world scenario, kids take ages to eat ice creams. Before you know it, it’s all over their clothes, your clothes, the floor, the settee, the ceiling, the family pet, everywhere. Comfortable Summer indoor temperatures aside, the solar reflective properties of low E glass may very well increase the refractory period between the initial scoop, and the first drip.
ADVANTAGES OF LOW E GLASS: UV PROTECTION
Low E Glass prevents almost 100% of UV radiation from reaching the interior of your home
Through a similar mechanism to which thermal radiation is reflected, low E glass is also able to prevent the vast majority of UV radiation from entering your home. This not only protects your family, but also your furnishings, as UV light has a particularly annoying habit of having a sort of bleaching effect on your carpets and fittings, causing them to lose their colour.
The way this UV protection works is a bit science-y. Remember the radiation chart from your science classes in school? Essentially radiation comes in different forms dependant on its wavelength. For example, a heat source emits infrared waves, which have a longer wavelength than visible light, among other things the sun emits Ultraviolet waves, which have a shorter wavelength than visible light. Without getting too technical, the coating on low E glazing is able to resist these specific wavelengths of radiation pretty darn effectively, whilst still allowing a portion of the visible light waves to pass through.
The most effective low E windows stop almost 100% of UV radiation from entering your home, keeping your family safe and your furniture un-discoloured.
BONUS ADVANTAGES OF LOW E GLASS
Firstly, as mentioned soft-coat low E glass contains its low-emissivity coating on a surface sealed within the unit, this means the coating is less likely to be damaged or scratched, and will likely retain the vast majority of it’s insulating, sun-reflecting and UV protecting powers for many years.
Low E glass also does not prohibit the addition of other useful features such as increased security, noise-proofing or easy-cleaning technology.
Low E glass makes your home more energy efficient, potentially saving you money on your heating bills, and performs better than standard double glazing.
This reduction in your heating bills correlates to a reduction in total energy usage, reducing your carbon footprint.
Finally, low E glass reduces the glare from light sources compared to standard uncoated glass.
DISADVANTAGES OF LOW E GLASS: DECREASED NATURAL LIGHT ENTRY
One of the disadvantages of Low E Glass could be a loss of natural light transmission, depending on your preference.
The first of the disadvantages of low E glass is a bit of a room divider. Depending on the way you look at it, this could be an advantage or a disadvantage. In our opinion it’s probably both. It could fall into the “disadvantages of low E glass” category, because natural light entry to your home will be diminished through these particular windows, ranging anywhere from a 25% to an 85% reduction, dependant on the specification of the units you choose.
But this could also be seen as an advantage, because having 100% natural light coming in through your windows would be annoying for myriad reasons; increased glare, and associated increased UV and thermal radiation, entering your home being top amongst them.
A window that reduces natural light transmission gives you a choice. You can have the slightly darker, un-glare-y atmosphere of a closed window, or simply open it and let the light shine on in.
DISADVANTAGES OF LOW E GLASS: IT’S MORE EXPENSIVE
The initial cost of installing low E units is higher than installing standard uncoated glazing – one of the disadvantages of low E glass.
Now initially this one is one of the disadvantages of low E glass. None of us like shelling out more than we have to – especially when there are cheaper alternatives out there. A soft-coat low E glass unit is generally more expensive to purchase for your windows than an uncoated standard toughened glass unit.
However, this extra cost you pay for this glazing type initially, with its powerful thermal insulating properties, may very well lead to savings in your heating bills compared to standard uncoated glass. Potentially meaning the money you’d save initially installing standard glass could be lost on heating bills in the future, due to their inferior insulating ability.
CONCLUSION
Well there you have it, the advantages and disadvantages of low E glass, all in one place.
When it comes to the advantages and disadvantages of low E glass, it can be seen that the positives are plentiful and the negatives are negligible. With its remarkable ability to reflect heat in such a way that makes it beneficial across all seasons of the year, whilst also protecting your furniture from UV radiation and potentially lowering your home’s carbon emissions, the advantages of low E glass are easy to see. But for some, its increased initial cost and diminished natural light transmission may lead them to believe that the disadvantages of low E glass outweigh the benefits.
We hope this has helped you become more informed about your glass options when it comes to your next glazing purchase.
